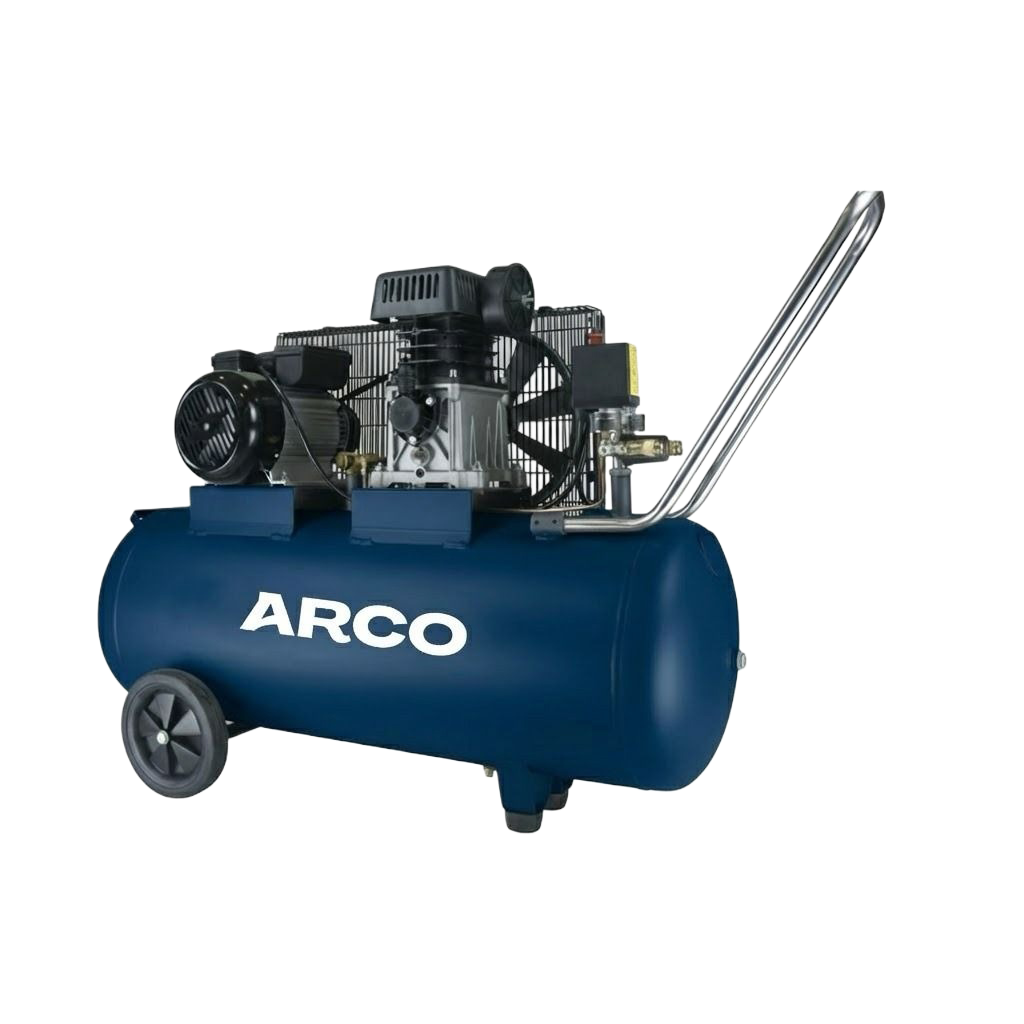

The ARCO ARPC-100L-2.75 is a belt-drive piston air compressor designed for extended workshop use, automotive servicing, and higher-demand pneumatic applications. Its 100-litre tank provides a substantial air reserve for continuous use, while the 2.75 HP belt-drive motor keeps the unit running efficiently during long sessions.
Portable and easy to move between work areas, the ARPC-100L-2.75 is equipped with transport wheels and a carry handle. The auto pressure switch manages operation automatically, reducing the need for manual intervention during use.
The ARPC-100L-2.75 is designed for the workshop user who needs a reliable, mid-capacity source of compressed air for a variety of tasks. The twin pressure gauges allow the user to monitor both tank and outlet pressure simultaneously, giving full control over output without the need for separate gauges.
The inclusion of a safety valve, regulator, and check valve ensures the ARPC-100L-2.75 operates safely within its design parameters. Anti-vibration rubber pads reduce the transmission of noise and movement to the floor during operation.
The ARPC-100L-2.75 is supplied ready to use with all key components pre-installed. The British G-Type plug is fitted to the 2-metre cable, making the unit ready for standard single-phase power outlets.
ARPC-100L-2.75
100 Liters
2.75 HP (2 kW)
220V / 50Hz
224 L/min
10 Bar (145 PSI)
Beltdriven, oillubricated
Twincylinder
1050–1200 RPM (lowRPM for durability)
≤ 95 dB(A)
59 kg
1090 × 430 × 840 mm
The ARPC-24L delivers reliable compressed air for light workshop tasks, tyre inflation, and spray applications in a compact, easy-to-move format.
The ARPC-100L-2.75 is suited for sustained workshop tasks including spray painting, blow-off cleaning, and operating pneumatic tools and air-powered equipment. Its 100-litre tank and 224 l/min airflow rate are well matched to continuous-use applications where a higher air reserve and consistent output are required.
Yes. The ARPC-100L-2.75 uses an oil-lubricated pump. The oil level should be checked regularly using the oil dip stick provided. Maintaining the correct oil level is important for pump longevity. The type of oil and refill intervals are detailed in the product manual supplied with the unit.
The ARPC-100L-2.75 comes pre-fitted with a British G-Type plug on a 2-metre power cable. This is compatible with standard single-phase 230V / 50Hz electrical outlets commonly found in workshops and garages across the region.
The ARPC-100L-2.75 is a floor-standing belt-drive unit intended for a fixed workshop position. At 59 kg, it should be placed on a stable, level surface and connected to tools via an air hose, with its upright tank profile keeping the floor footprint compact.
