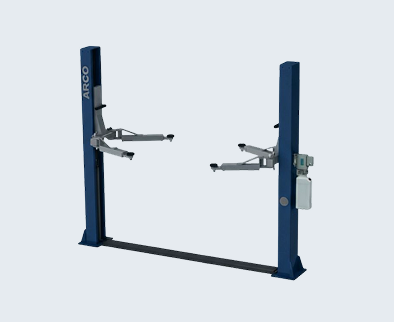

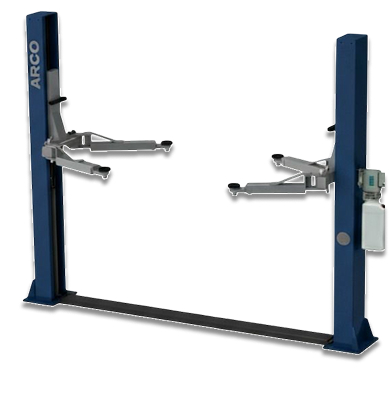

The ARCO AC-2PL-2DEA is an electro-hydraulic two-post lift with a clear floor design, providing an unobstructed space between the columns for easy vehicle positioning and full undercarriage access. The electric lock release and electromagnetic lowering system give operators precise control over every stage of the lifting and lowering process.
With a 4,000 kg rated capacity, 1,930 mm maximum lift height, and a drive-through width of 2,610 mm, the AC-2PL-2DEA is well suited to workshops that service a high throughput of passenger vehicles and light commercial vehicles daily.
The clear floor design of the AC-2PL-2DEA eliminates the floor-level crossbar found on older post lift designs, giving technicians unobstructed access under the vehicle from any angle. This improves efficiency for tasks such as exhaust work, drivetrain inspection, and brake servicing.
The electromagnetic lowering system ensures that the descent speed is consistent and predictable, reducing the risk of sudden or uneven lowering. The electric lock release adds an additional layer of control, preventing accidental release during servicing.
The AC-2PL-2DEA is supplied as a complete lift system including both columns, the overhead sync cable, the electro-hydraulic power unit, and the lifting arm sets. Professional installation on a concrete slab is required.
4000 kg
1930 mm
3740 mm
90 mm
2610 mm
3365 mm
3740 mm
2.2kW / 3Ph / 380V
The AC-2PL-2DEA removes floor-level obstructions entirely, giving your technicians unrestricted undercarriage access for every servicing task.
A clear floor two-post lift has no structural crossbar or base plate between the two columns at floor level. This gives technicians complete freedom of movement under the vehicle from any direction, making it much easier to perform tasks such as exhaust replacement, undercarriage inspection, drivetrain work, and brake servicing compared to lifts with a floor-level crossbar.
The electromagnetic lowering system uses a controlled electromagnetic brake to regulate the rate of descent when the operator initiates the lowering sequence. This ensures a smooth, consistent lowering speed rather than the rapid or unpredictable descent that can occur with purely manual release systems, providing an additional layer of safety during vehicle lowering
The minimum height is 90 mm, which refers to the clearance beneath the lifting arm when the lift is in its lowest stored position. This is sufficient for most standard passenger cars and ensures the lift arms can be positioned correctly under the vehicle’s jacking points without difficulty.
The AC-2PL-2DEA has a drive-through width of 2,610 mm, which accommodates most standard passenger cars, SUVs, and light commercial vehicles. Verify your vehicle’s width before selecting this lift, particularly for larger or modified vehicles. Contact our team for advice on suitability for specific vehicle types.
