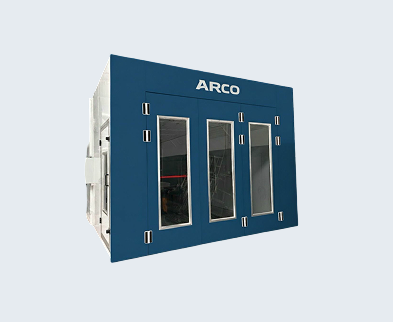

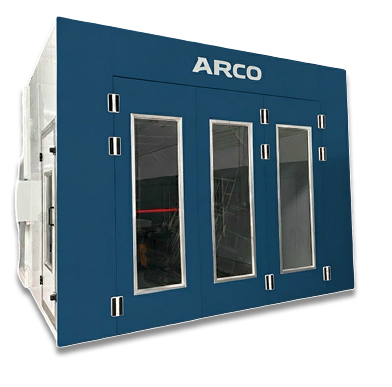

The ARCO Forno Pro is a full-specification automotive spray and bake booth built for professional automotive body shops. With an inside dimension of 6,900 x 4,000 x 2,650 mm, the Forno Pro accommodates standard passenger vehicles with clearance for comfortable operator movement around the vehicle during spraying and inspection.
The 16 kW system power supports both the ventilation and heating requirements of a full bake cycle. The three-section folded glass front door provides full-width vehicle entry, and the 800 x 2,000 mm side service door allows technician access without opening the main door.
The Forno Pro provides a step up in capacity and performance for body shops that handle a high volume of vehicles or larger vehicle classes. The larger cabin volume allows better operator access around the vehicle during the spraying phase, reducing the risk of missed areas or uneven coverage.
The pneumatic damper system enables automatic cycle management between spray and bake phases, and the full multi-stage filtration system — primary, ceiling, floor, and active carbon — ensures air quality is maintained throughout both phases of the finishing process.
The Forno Pro is delivered as a complete modular booth kit. All structural panels, the ventilation and heating system, filtration media, interior lighting, and door assemblies are supplied. Professional on-site assembly and commissioning is required.
6900 x 4000 x 2650 mm
7006 x 4010 x 3400 mm
3000 x 2600 mm
800 x 2000 mm
16 kW
Automotive Spray & Bake Booth
Downdraft
Rockwool, 50mm, 0.476mm colored steel, tongue & groove
300mm galvanized steel, full grids (5 rows), 3 ramps, 2000x900mm
3-fold tempered glass door
Primary filter, ceiling filter, floor filter, active carbon
Pneumatic damper (auto spray-to-bake)
The Forno Pro delivers the space, airflow, and thermal performance required for a professional high-throughput automotive finishing operation.
The ARCO Forno Pro has an internal cabin dimension of 6,900 x 4,000 x 2,650 mm (length x width x height). This provides sufficient space to accommodate a standard passenger car or light commercial vehicle, with adequate clearance for the operator to move around the vehicle during the spraying process.
The Forno Pro has a total system power requirement of 16 kW, which covers both the ventilation fans and the heating elements used during the bake cycle. This requires a suitable three-phase electrical supply to be available at the installation site. Contact our team for site-specific electrical requirements.
Yes. In addition to the three-fold main front door, the Forno Pro includes a separate service door measuring 800 x 2,000 mm. This allows technicians to enter and exit the booth without opening the large main door, which is particularly useful during inspection or touch-up work between spray stages.
The primary differences are cabin size and system capacity. The Forno Pro has a larger inside dimension (6,900 x 4,000 mm vs the Eco) and a higher total power rating of 16 kW. The Pro is suited for body shops with higher throughput requirements or workshops that regularly handle larger vehicle classes. Both use the same downdraft airflow and Rockwool panel construction.
